Using powder for mirror surface finishing.
The Z axis utilizes AC servo motor.
N C programmable functions
The Circle Angle of Sparking is lower than 0.02mm
The best surface roughness (Ra) is better than 0.1 µm.
High speed and long distance jumping.
Special rib shape machining function.
|
|

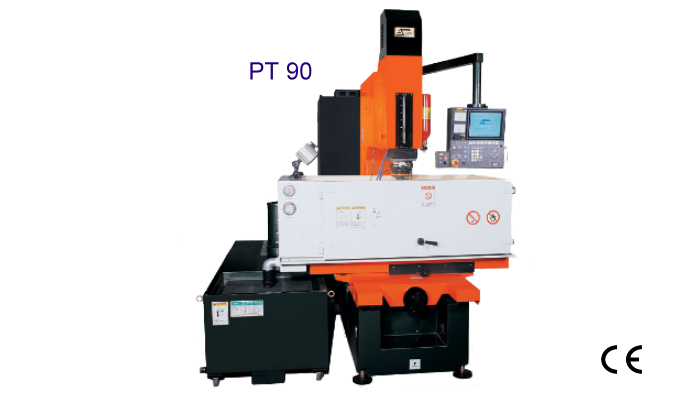

PT90 |
| X, Y-Travel |
500 x 400 mm |
| Z-Travel |
300 (290) mm |
| Table Dimension |
820 x 500 mm |
| Work Tank Dimension |
1300 x 760 x 430 mm |
| Max. Table-Quill Distance |
710 mm |
| Max. Electrode Weight |
100 kgs |
| Max. Table Loading |
1600 kgs |
| Dielectric Tank Capacity |
600 Litre |
| Filters |
3 PCS |
| Machine Weight |
2500 + 210 kgs |
| Machine Height |
2280 - 2570 mm |
| Ground Area |
 |
| Nominal Current |
60A / 5A, 90A / 5A, 120A / 5A |
| Input Voltage |
220 / 380 / 415 / 440V |
| Connected Rating |
7KVA / 10KVA / 13KVA |
| Max. Stock Removal Rate |
400 / 600 / 800mm³/min |
| Best Surface Roughness |
Ra ≦ 0.1μm |
| Best Electrode Wear Rate |
< 0.2% ( specific equip.< (0.1%) |
| ․ Networking monitoring CNC machine (option) |
|
