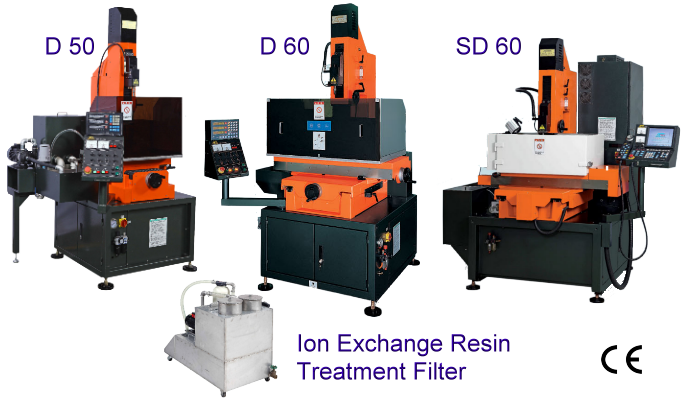

Small hole Drilling EDM D 50 / D 60 / SD 60 |
 |
Manual type & CNC Drilling EDM profession manufacturer.
Drilling capacity dia. is fromФ0.1mm to Ф6.0mm.
High verticality (deviation) is lower than 0.03.
Inbuilt water filtration system and pure water available.
Ion Exchange Resin Treatment Filter support more machines and raise working efficiency that's over 30%
Special circuit design applies to all kinds $ hardened metal materials.
Optional discharge oil machining systems for processing tungsten steel and special materials
|
|
|
|
|
| X, Y-Travel |
300 x 200 mm |
400 x 300 mm |
400 x 300 mm |
| Z-Travel |
360 mm |
360 mm |
360 mm |
| Backslide Travel |
140 mm |
190 mm |
190 mm |
| Vertical Head Travel |
160 mm |
160 mm |
160 mm |
| Table Dimension |
410 x 210 mm |
550 x 310 mm |
550 x 310 mm |
| Max. Distance on Table Quill |
350 mm |
400 mm |
400 mm |
| Electrode Pipe Dimension |
φ0.3 ~ φ3.0 mm ( special φ0.1 ~ φ6.0mm ) |
| Max. Workpiece Dimension |
630 x 520 x 300 mm |
1000 x 650 x 300 mm |
750 x 560 x 300 mm |
| Dielectric Tank Capacity |
30 Litre |
30 Litre |
110 Litre |
| Machine Weight |
900 kgs |
1300 kgs |
1500 kgs |
| Machine Height |
2370~2255 mm |
2380~2150 mm |
2390~2180 mm |
Standard accessories |
Additional Equipment |
| Electrode Chuck--------------1 Pc |
X, Y, Z Axis Linear Scales |
| Clamp Plate--------------------2 Pcs |
Special Electrode Pipes |
| Tool & Kit-----------------------1 Set |
Special Electrode Guide |
| Electrode Pipes-------------10 Pcs |
Water Filtration System |
| Electrode Guide---------------1 Pcs |
Ion Exchange Resin Treatment Filter |
| Metal Pad |
Normal Filtration Sysstem |
| |
Bigger workhead up to 600 mm long |
| ․ Networking monitoring CNC machine (option) |
|
